SKU: 295700 / 295699

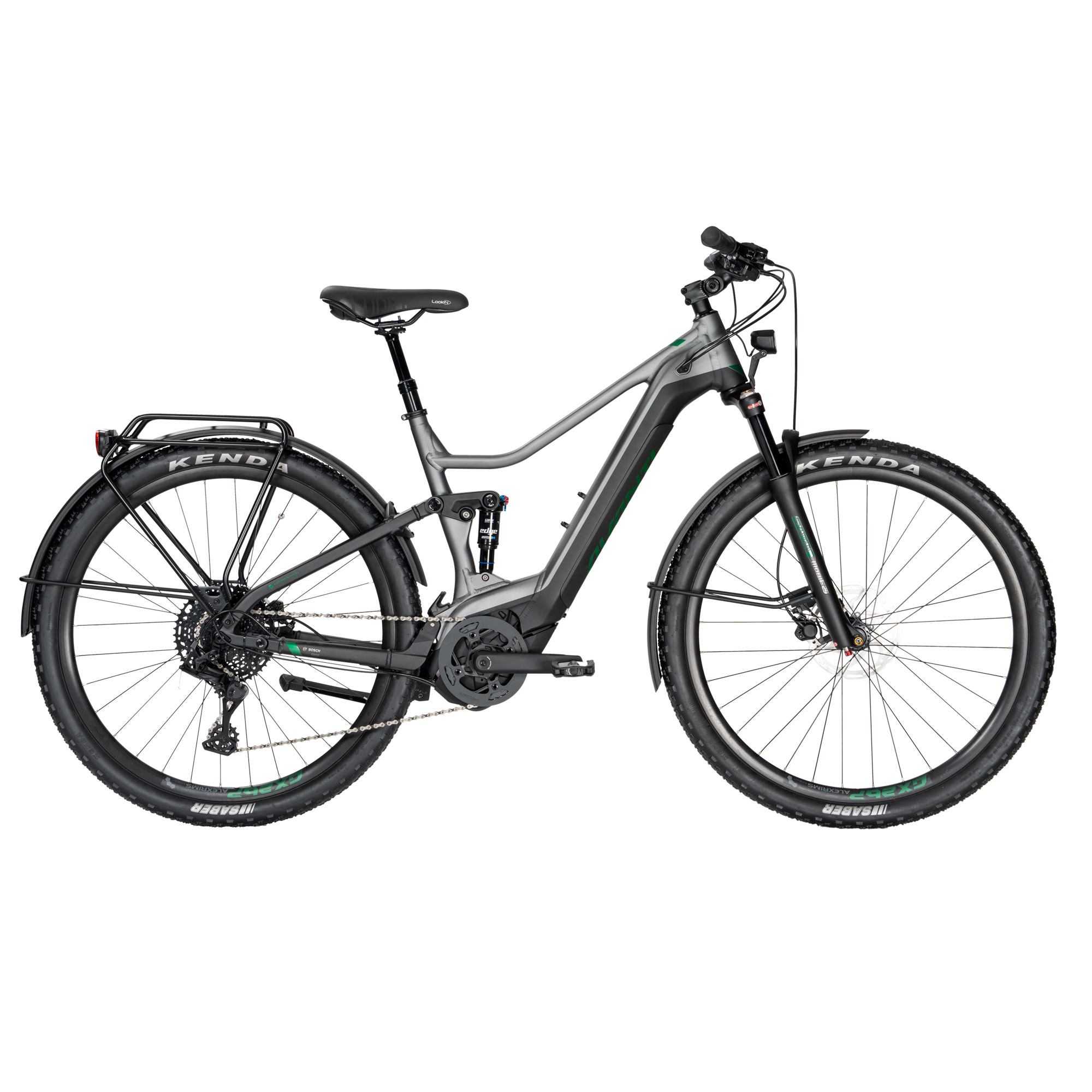

Explorer-E DS1

RRP AU$5,999.99 / NZ$7,499.99

Colour: Silver

Size: S, M, L, XL

Available In: Australia & New Zealand

Find Your Local Dealer

Adventure trekking just got a whole lot more comfortable.

Offering a powerful Bosch Performance Line motor, 500Wh internal battery and 100/80mm of plush and air-tuneable suspension, the Explorer DS1 will expand your horizons. With Microshift’s E-bike specific 10sp components, hydraulic brakes and a dropper post, it’s got ‘Explorer’ written all over it – literally!

Key Features
Bosch’s Gen 3 Performance Line motor for smooth power assisted riding up to 32kph for NZ or 25kph for AU

Bosch full internal 500Wh Powertube battery is light, smoothly integrated into the frame and provides great range for those rail trail adventures

German-engineered light and tough 80mm travel frame with tuneable air suspension that can be locked out on smooth terrain

Microshift’s E-bike specific 10 speed components, powerful hydraulic disc brakes and a dropper post for easy mounting/dismounting

Custom alloy Racktime rear rack with integrated Hebie full fenders, front and rear lights and a robust kickstand

All specifications subject to change

Frame:

AL-6061 Ultralight tubing, 80mm travel, cartridge bearing pivots, tapered headtube, PowerTube internal battery

Fork:

Suntour Mobie 25 LOR Air, Taper, 100 mm, 15×100 mm axle, remote lockout

Travel:

100mm/80mm

Rear Shock:

Suntour UNAir R8, 80 mm, lockout

E-Drive System:

Bosch Gen 3 Performance Line

Drive Unit:

Bosch Gen 3 Performance Line, 65Nm, 250W, 32kph for NZ, 25kph for AU

Battery:

Bosch Powertube 500Wh Internal

Display:

Bosch Purion

Charger:

Bosch Std 4A Charger

Rear Derailleur:

Microshift Advent X 10sp with Clutch

Shifter:

Microshift Advent X 10sp Single-Click E-bike Trail Pro trigger

Crankset:

FSA Gen 3 Bosch ISIS, 38T

Chainring:

38T Narrow/Wide

Chain:

KMC E10 E-bike chain

Cassette:

Microshift E-cassette, 11-48T, 10sp

Brake Levers:

Tektro M275 Hydraulic

Brakes:

Tektro M275 Hydraulic, 180mm Centrelock rotors

Handlebar:

Alloy riser bar, 15 deg sweep

Headstem:

Alloy Ahead adjustable rise

Grips:

Dual density Ergo

Seatpost:

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle:

Selle Royal Lookin comfort with RoyalGel padding

Headset:

Integrated Threadless 1 1/8th – 1.5"

Hubs:

Fr: Formula Alloy Centrelock 100×15 32H, Rr: Formula Alloy Centrelock Cassette 148x12mm thru axle

Spokes:

Stainless Steel with Brass Nipples

Rims:

Alex GX26P Gravel rims, double wall

Tyres:

Kenda Sabre 29 x 2.2 with AV tube

Pedal:

VP retro with alloy body and rubber gripper

Accessories:

Full cover fenders, integrated rear carrier rack, kickstand and e-bike battery powered lights

We build bikes designed for you to break free, however and whenever you choose.

Est in New Zealand since 1985
