Bikes Mountain Bikes

SKU: 426674 / 426675

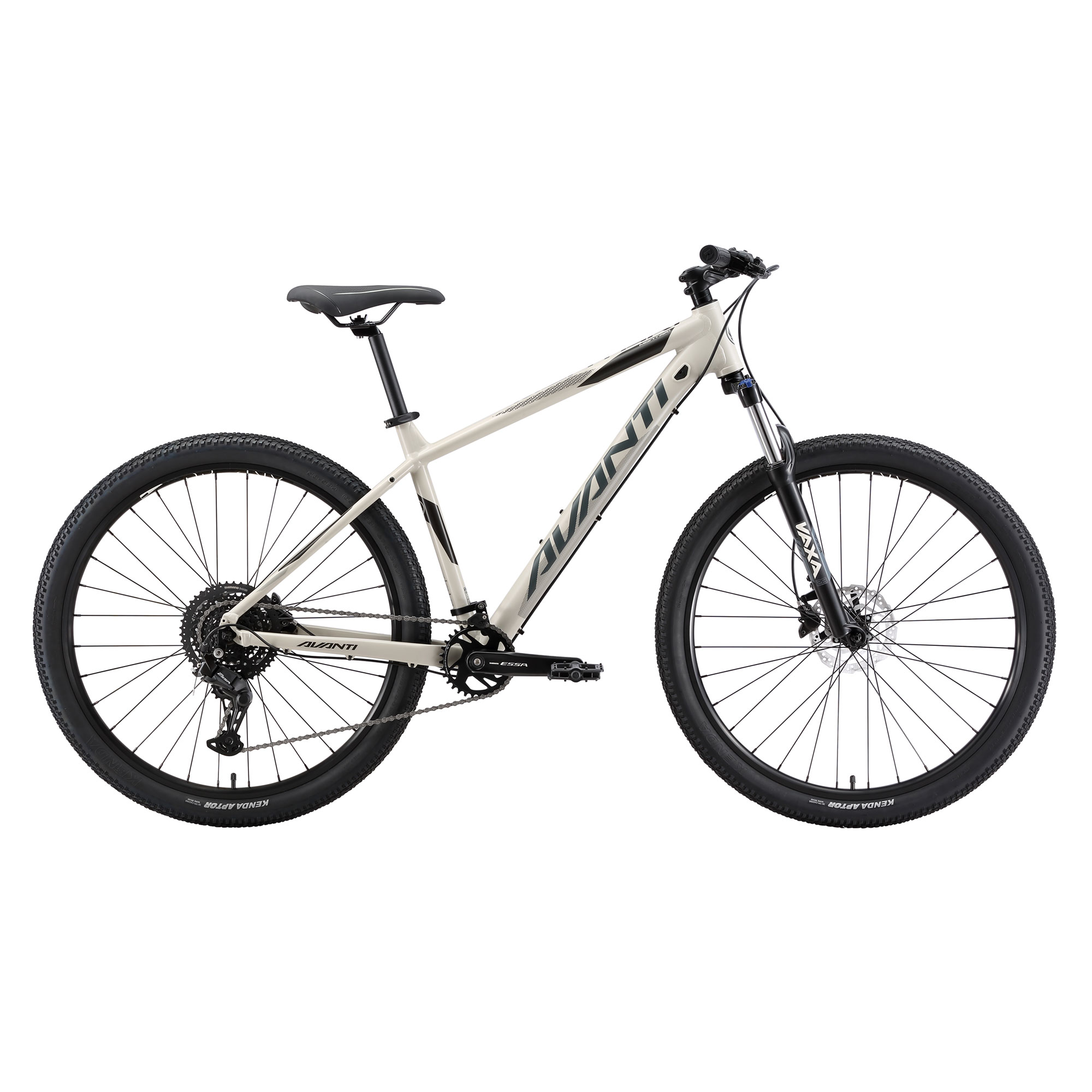

Montari 1

Name: Montari 1
SKU: 426674 / 426675
Availability: InStock

RRP AU$879.99 / NZ$979.99

Colour: Black, Warm Grey

Size: XS, S, M, L, XL, XXL

Available In: Australia & New Zealand

Find Your Local Dealer

The Montari 1 features light alloy HL Vaxa forks that can lock out when on the road.

Shimano’s dedicated new ESSA 1x8sp drivetrain with a proper chain guide, for crisp no-fuss shifting and chain-retention on the roughest of trails. Hydraulic Shimano disc brakes and light alloy wheels featuring grippy Kenda rubber, keep it all in shape on any surface.

Key Features
ADT alloy frame with internal brake cable and sport geometry for on or off road riding

HL Vaxa alloy fork, 100mm travel, with lockout

8sp Shimano ESSA drivetrain with chain guide and huge gear range for off-road fun

Shimano hydraulic disc brakes for responsive braking, rain, hail or shine

Light alloy wheels are easy to spin up to speed and wide Kenda tyres provide maximium grip

All specifications subject to change

Frame:

ADT 6061 Formtech Alloy, Replaceable Hanger, internal brake cable

Fork:

HL Vaxa 525S, 100mm travel,28mm stanchions, with lockout

Rear Derailleur:

SHIMANO ESSA 8sp

Shifter:

Shimano ESSA Rapidfire Plus

Crankset:

Shimano ESSA alloy 32T w/Mr Control Chain Guide

Chainguide:

S/tube mount c/guide

BB-Set:

Cartridge

Chainring:

32T

Chain:

KMC Z8.3 8sp

Cassette:

SHIMANO HG300 cassette, 11-45T, 8sp

Brake Levers:

Shimano MT200 Hydraulic

Brakes:

Shimano MT200 Hydraulic with 160mm rotors

Handlebar:

Alloy 31.8 with 9deg backsweep and 12mm rise

Headstem:

Zero 31.8mm Alloy Ahead, 6 deg

Grips:

Zero Strike Dual Compound

Seatpost:

Zero Alloy 27.2mm

Saddle:

Zero Zealth Sport

Headset:

Semi-Integrated Threadless 1-1/8"

Hubs:

Shimano ESSA alloy cassette disc 32H

Spokes:

Stainless Steel with Brass Nipples

Rims:

Weinmann XRD28 Double-wall Alloy 32H

Tyres:

Kenda Aptor 27.5×2.20 or 29×2.20" MTB tyre with AV tube

Pedal:

Nylon platform with ball bearings

Wheel Size:

27.5 Inch, 29 Inch

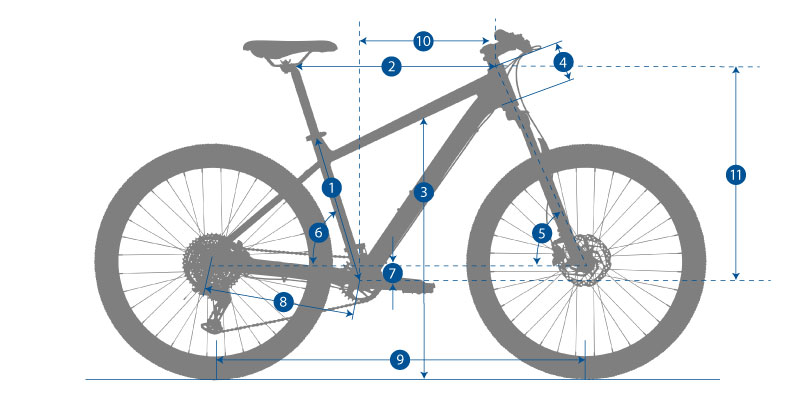

		XS	S	M	L	XL	XXL
1	Seat Tube Length (C-Top) mm	360	400	445	480	525	565
2	Horizontal Top Tube Length mm	555	570	590	605	620	525
3	Standover Height mm	722	738	763	784	814	843
4	Head Tube Length mm	110	115	125	125	135	145
5	Head Angle deg	69.5	69.5	70	71	71	71.5
6	Seat Angle deg	73.5	73.5	73.5	73.5	73.5	73
7	BB Drop mm	55	52	52	70	70	70
8	Chainstay Length mm	433	433	433	433	433	433
9	Wheelbase mm	1055	1072	1087	1098	1114	1107
	Fork Offset mm	42	42	42	46	46	46
	Stem Length mm	60	60	75	75	90	90
	Crank Length mm	170	170	175	175	175	175
	Wheel Diameter inches	27.5	27.5	27.5	29	29	29
