SKU: 295727

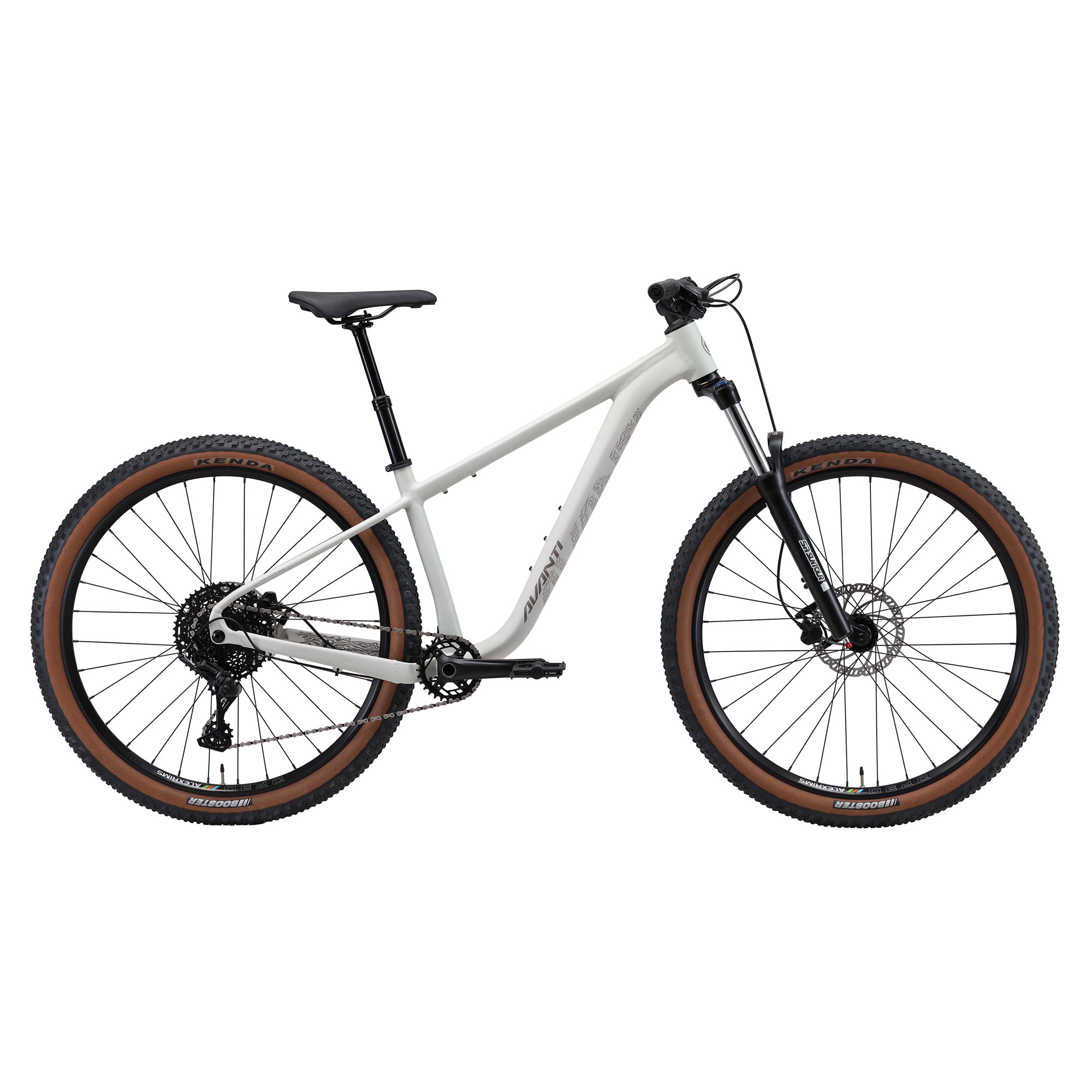

Hammer 1

RRP AU$1,599.99 / NZ$1,899.99

Colour: Olive Grey

Size: S, M, L, XL

Available In: Australia & New Zealand

Find Your Local Dealer

The Hammer is our brand new aggressive, trail hard-tail.

Built super tough, the stylish formed alloy frame is long, low and slack and specifically built around long travel trail forks, ‘1-by’ only drivetrains, long travel dropper posts and massive 29×2.6″ wide tyre clearance. With modern trail geometry, super tough forks and wide rims, it’s up to pretty much anything you care to take on.

Key Features
Tough alloy frame with trail-ready long, low, slack geometry

Tough, long travel coil-sprung forks with thru axle and 34mm uppers

Long travel dropper post with full insert into the frame

Tektro hydraulic disc brakes for responsive braking, rain, hail or shine

Durable, tubeless ready 29″ wheels with grippy 2.6″ wide tyres

All specifications subject to change

Frame:

ADT 6061 Formtech Alloy, Boost rear dropouts, full internal cables including dropper, tapered HT, threaded BB

Fork:

SR XCM34 Boost LOR, 130mm travel, 34mm stanchions, Hydraulic Rebound Adjust and Lockout

Rear Deraileur:

Microshift Advent X 10sp with Clutch

Shifter:

Microshift Advent X 10sp Trail trigger

Crankset:

ProWheel Charm Boost, forged alloy crank, w/30T narrow/wide (replaceable) chainring, and threaded external BB

BB-Set:

Threaded external

Chainring:

30T Narrow/Wide

Chain:

KMC X-10 10sp

Cassette:

Microshift Advent X cassette, 11-48T, 10sp

Brake Levers:

Tektro M275 Hydraulic

Brakes:

Tektro M275 Hydraulic with 180mm rotors

Handlebar:

Syncros Hixon 2.0 Butted Alloy, 31.8mm with 12mm rise, 9 deg sweep

Headstem:

Syncros XM1.4 Alloy, -31.8mm, -2.5 deg rise x 40mm

Grips:

Syncros Trail with VEXK

Seatpost:

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle:

Syncros ER 2.5

Headset:

Syncros – Acros Cable Routing HS System, OD 50/62mm / ID 42/56mm

Hubs:

Fr: Formula Boost 110×15 32H, Rr: Formula Boost Sealed Bearing 148×12 32H

Spokes:

Stainless Steel with Brass Nipples

Rims:

Alex DP30, Double-wall, eyeleted Alloy 32H, TL ready

Tyres:

Kenda Booster 29 x2.6 with FV tube

Pedals:

Nylon platform with ball bearings
