SKU: 295724

Hammer S1

RRP AU$3,499.99 / NZ$4,499.99

Colour: Brushed

Size: S, M, L, XL

Available In: Australia & New Zealand

Find Your Local Dealer

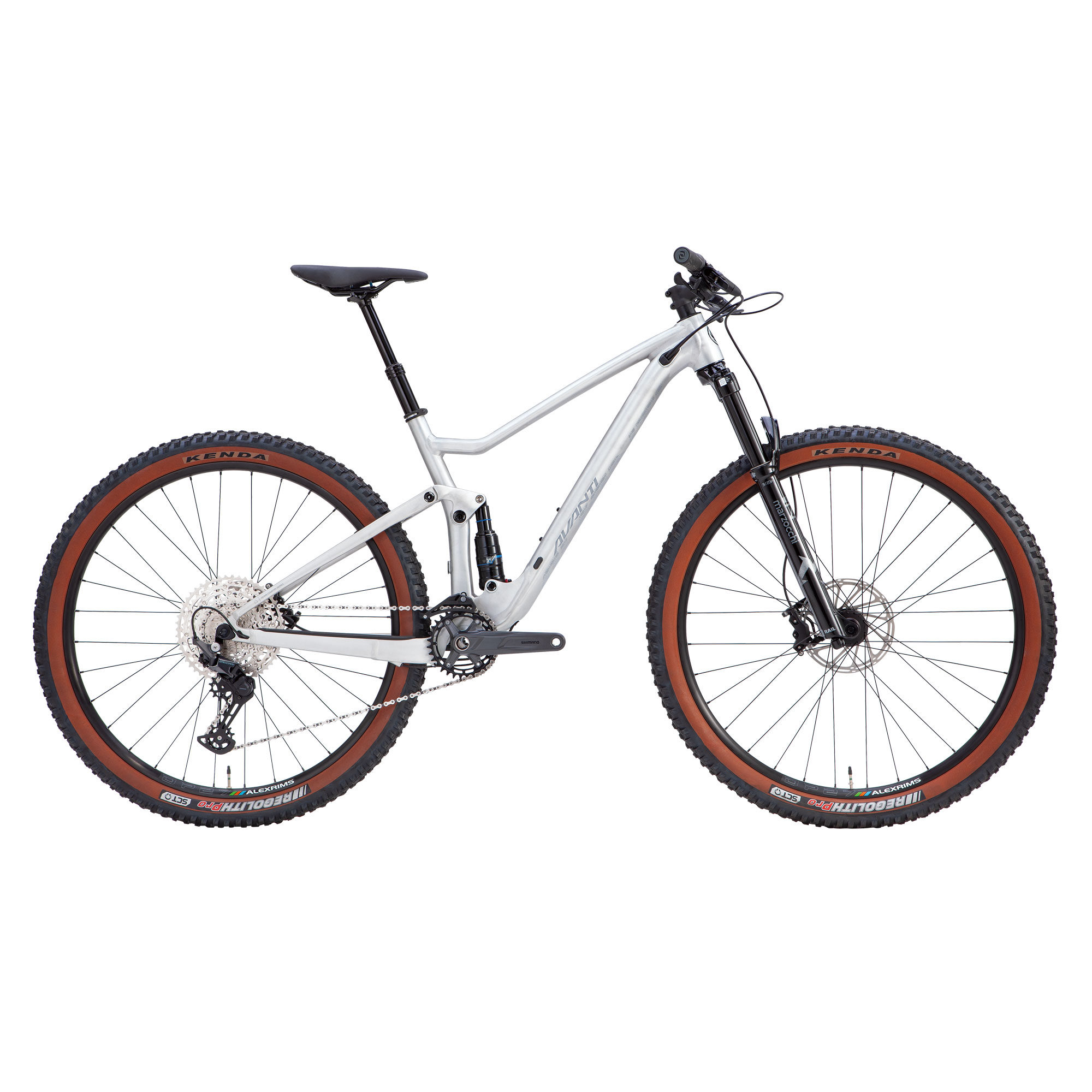

The brand new Hammer S1 offers a superlight, 120mm travel, butted 6061 SL alloy frame, engineered in Switzerland, with a progressive ‘down-country’ geometry, featuring longer reach and a slacker head angle for a super-stable ride.

With Marzocchi’s tought and light 130mm air-sprung Z2 Bomber forks, a custom-tuned X-Fusion rear air shock and a long-travel dropper, the Hammer will boost your confidence in even the toughest of trails. Wide rims and grippy 2.4″ wide tubeless ready rubber will hook up on just about anything and Shimano’s excellent Deore 12sp groupset will remain flawless for year of hard riding. Now go after it!

Key Features
Swiss-engineered superlight 6061 SL Alloy 120mm travel 29er frame with modern ‘down-country’ geometry

Marzocchi Z2 Bomber 130mm fork and X-Fusion O2 Pro R air shock

Shimano Deore 12 speed components for bullet proof shifting

SRAM’s new 4-piston, Db8 hydraulic brakes, 180mm rotors

Full Syncros cockpit with internally routed dropper post

All specifications subject to change

Frame:

AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m

Fork:

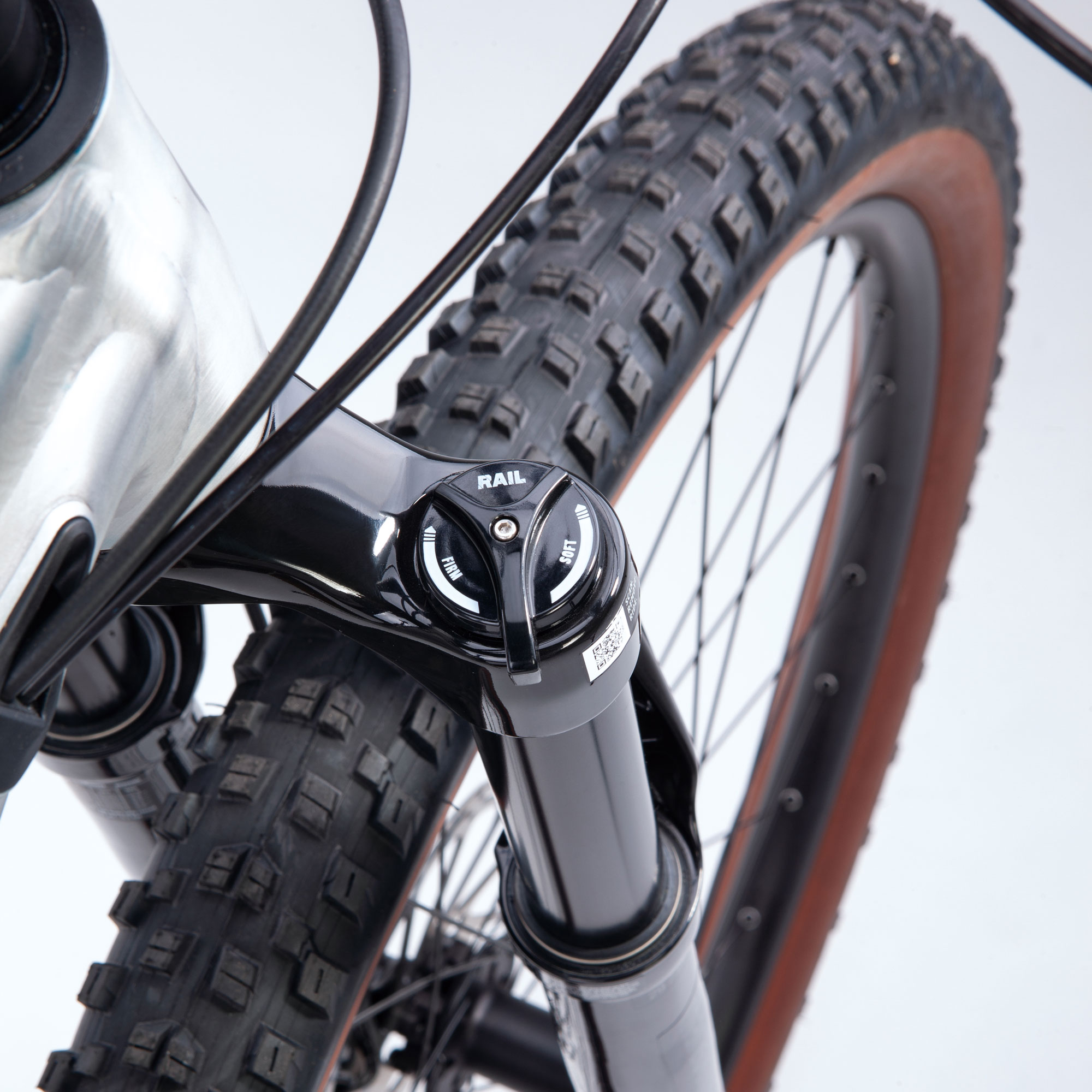

Marzocchi Z2 Bomber Air w/RAIL damper, 15x110mm axle, 1.5" taper, 130mm travel

Travel:

130/120mm

Rear Shock:

X-Fusion 02 Pro R Air, with rebound adjust

Rear Deraileur:

Shimano Deore 12sp with Clutch

Shifter:

Shimano Deore, 12sp

Crankset:

Shimano Deore, 32T

Chainguide:

Yes

BB-Set:

Shimano Pressfit

Chainring:

32T Narrow/Wide

Chain:

KMC X12

Cassette:

Shimano Deore Cassette, 10-51T, 12 speed

Brake Levers:

SRAM DB8 hydraulic

Brakes:

SRAM DB8 4-Piston hydraulic, 180mm 6-bolt rotors

Handlebar:

Syncros Alloy 31.8mm, with low rise, 9 deg sweep

Headstem:

Syncros Alloy 31.8, 6 deg rise

Grips:

Syncros Pro Lock-on

Seatpost:

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle:

Syncros Belcarra 2.5

Headset:

Integrated Threadless Syncros OE Pressfit/ Tapered 1.5”-1 1/8”

Hubs:

Fr: Formula Boost Sealed Bearing 110×15 32H, Rr: Formula Boost Sealed Bearing 148×12 32H

Spokes:

Stainless steel

Rims:

Alex DP-27 Double-wall Alloy with eyelet 32H, Tubeless Ready

Tyres:

Kenda Regolith Pro, 29 x 2.4" Tubeless Ready, 120tpi
