SKU: 295692

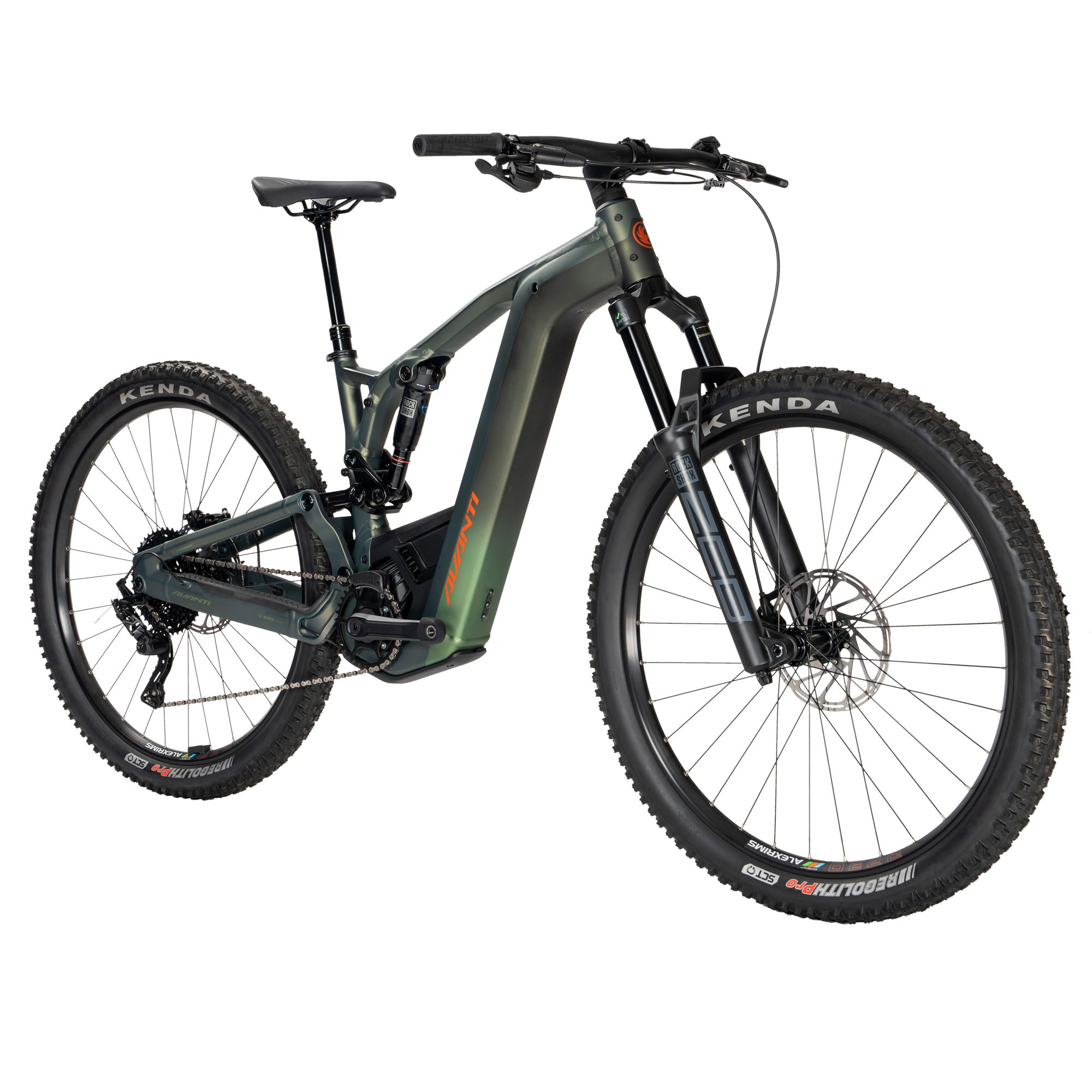

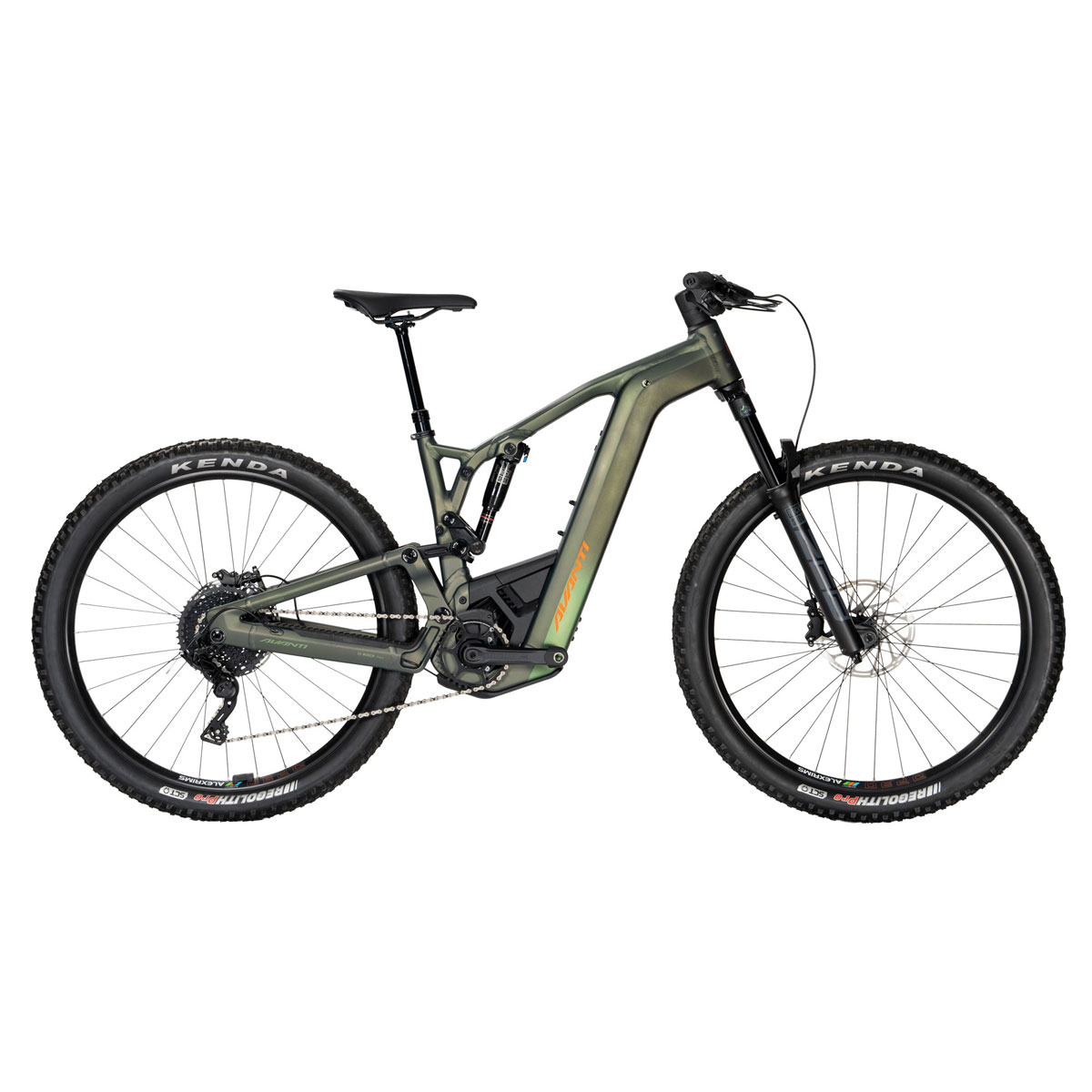

Hammer-E LT1

RRP AU$7,499.99

Colour: Khaki Green

Size: S, M, L, XL

Available In: Australia

Find Your Local Dealer

The Hammer-E LT1 features a new, super tough, German-engineered, frame that will handle the toughtest of techical terrain.

Now with Bosch’s new Smart System Performance Line CX motor and a massive 625Wh (range-extendable*) battery, you’ll get smooth delivery of all the torque you need, all day long. The LT1 features the massive Rockshox ZEB fork, huge 4-piston SRAM brakes and grippy rubber to ensure you can navigate the trickiest of trails with electrically assisted ease.

Range extender batteries and parts sold separately (compatible with Bosch PowerPack 400Wh & 600Wh and new PowerMore 250Wh range extender).

Key Features
Bosch’s SmartSystem Performance Line CX motor for smooth power assist up to 25kph for AU

Bosch full internal SmartSystem 625Wh Powertube battery is light, smoothly integrated into the frame and provides huge range for trail riding

German-engineered light and bullet-proof, 140mm travel frame with low-standover 27.5″ wheels on S frame size

Rockshox ZEB Base fork with massive 38mm upper tubes mate perfectly with this powerful, long travel e-weapon

Microshift XCD/E-13 11sp speed e-components for bullet proof shifting

All specifications subject to change

Frame:

AL-6061 Ultralight tubing, 140mm travel, cartridge bearing pivots, 1.5" tapered headtube, PowerTube internal battery and internal cables

Fork:

Rockshox ZEB Base, 150mm, air spring, 1.5" taper, rebound + compression adjust, Boost 110 15mm axle – S=27.5, M/L/XL=29er

Rear Shock:

Rockshox Delux Select+ RT, Debon Air, rebound adjust

Travel:

150/140mm

E-Drive System:

Bosch Gen 4 SmartSystem Performance Line CX

Drive Unit:

Bosch Gen 4 SmartSystem Performance Line CX, 85Nm, 250W, 25kph for AU

Battery:

Bosch SmartSystem Powertube 625Wh Internal

Display:

Bosch SmartSystem BRC3600 LED remote

Charger:

Bosch SmartSystem 4A

Rear Derailleur:

Microshift XCD 11sp with Clutch

Shifter:

Microshift XCD 11sp Trail trigger w/Sealed Bearing

Crankset:

E13 E-Spec+ Gen4 Bosch ISIS 34T Narrow/Wide

Chainguide:

E13 E-spec chain guide

Chainring:

34T Narrow/Wide

Chain:

KMC E-bike chain

Cassette:

Microshift E-cassette, 11-46T, 11sp

Brake Levers:

SRAM DB8 hydraulic

Brakes:

SRAM DB8 4-Piston hydraulic, 200mm Centrelock rotors

Handlebar:

Syncros Hixon 2.0, 31.8mm, with 12mm rise, 9 deg sweep

Headstem:

Satori Viper 3D Forged Alloy, 31.8mm Zero deg, with Acros AICR (internal cable routing)

Grips:

Syncros Lock-on

Seatpost:

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle:

Syncros ER 2.5

Headset:

Acros ZS56 eMTBN with block lock and internal cable routing

Hubs:

Fr: Formula Boost Sealed Bearing 110×15 32H, Rr: Formula Boost Sealed Bearing 148×12 32H

Spokes:

Stainless Steel with Brass Nipples

Rims:

Alex DP30 Double-wall Alloy 32H

Tyres:

Kenda Regolith 27.5/29 x2.6", 120tpi, folding, SCT (Tubeless Ready)

We build bikes designed for you to break free, however and whenever you choose.

Est in New Zealand since 1985
